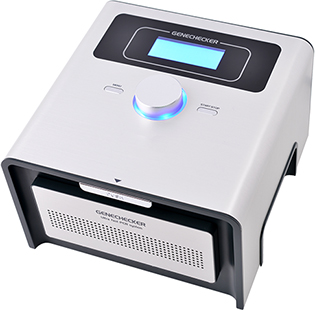

GENECHECKER® Model UF-100 Thermal Cycler

DNA amplification in 20 minutes

FEATURES

Patented chip based design and ultra-fast ramping provides extremely rapid output.
“40 cycles in 20 minutes”

Innovative PCR device at an affordable price

Intuitive control with LED indicated jog-dial and LCD display

Small footprint (20cm x 20cm x 12.5cm) ideal for bench-top operation

Increased sample capacity (16 samples) provides better efficiency.

01 The best tool to make your PCR
application faster and easier

  • GENECHECKER®operates with special polymer chip (Rapi:chip™)
    which enables even faster thermal treatment of
    samples in it than the case of using PCR tubes for
    conventional PCR instruments. 8 °C/sec ramping rate
    can be achieved for both heating and cooling
    through unique thermal cycling mechanism of GENECHECKER®

02 State-of-the-art hardware technology achieved
great performance and cost effectiveness.

  • The patented technical know-how of Genesystem applied to the
    model UF-100 thermal cycler is optimized for design and
    production of PCR device and publicly awarded Grand Prize at
    KINPEX the most prestigious competition for high-end inventions.

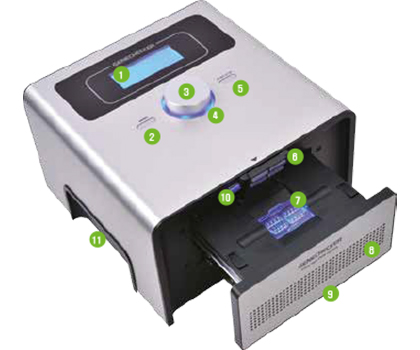

4-lined text LCD offers clear identification while protocol setting and status monitoring.

Main menu secreen is displayed when this button is pressed from initial screen. Displayed screen moves to previous step when this button is pressed.

Rotating jog-dial clockwise direction moves cursor on the display down(right) of increases set values. Rotating jog-dial in counter-clockwise direction moves cursor on the display up(left) and decreases set values. Pressing jog-dial selects the menu where cursor is located.

LED indicator is illuminated in two different colors-blue and red. Blue LED indicates that the instrument is idle and ready for use, i.e. PCR cycle is being performed. LED is turned off when prompted PCR cycles are finished.

Selected PCR protocel is executed when this button is pressed. Currently performed PCR cycle is immediately stopped when this button is pressed while the instrument is running.

Automatically presses upper surface of chip when the drawer is closed.

This is the point where the chip is loaded for PCR cycles. Flat surface is heated and cooled during thermal cycling.

Holes which air flows into the instrument through.

This is the module transporting the chip into the instrument. Mechanically stable structure and robust design offers soft movement and maintenance-free features of this frequently used part.

Chip drawer is gently opened and upper sealing cap on the heating plate is automatically lifted when this bar is softly pressed.

This part is to enhance portability of instrument.

SPECIFICATION

Operating Mechanism
Precise Control of Peltier Element
Temperature Accuracy
± 0.5°C
Temperature Uniformity
± 0.5°C (Well to Well)
Temperature Stability
± 0.5°C
Ramping Rate
8.0°C/ second
Range of Temperature Setting
35 ~ 65°C (1.0°C Increment) for RT Step / 20 ~ 99°C (1.0°C Increment) for PCR
Sample Fotmat
Polymer based 3-Dimensional Microfluidic Chip
Number of Sample per Run
16
Required Sample Volume
10μl
Typical PCR Duration
Less than 20 Minutes for 40 Cycles (without RT Step)
Display
Text LCD (4 Line)
Integrated Memory
Saves up to 12 PCR Protocols
Power (Wattage)
AAC 110-230V (50-60Hz) input / DC 12V Output (70W)
Dimension / Weight
200(w) x 200(d) x 125(h) mm / 2.6kg

ORDERING INFORMATION

Cat. No.
Description
Pack Size
1099100100
GENECHECKER® UF-100 Thermal Cycler
1 SET
1699100500
Optional Power Cable for Car Cigarette Power Socket
1 SET

You can download further information from below section.

Choose the file to download

  • UF-100 (Brochure)
Download

GENECHECKER® Model UF-150 Real-time PCR System

Fast and Affordable qPCR platform that benefits
your application

FEATURES

Patented chip based design and ultra-fast ramping provides extremely rapid output.
“40 cycles in 20 minutes”

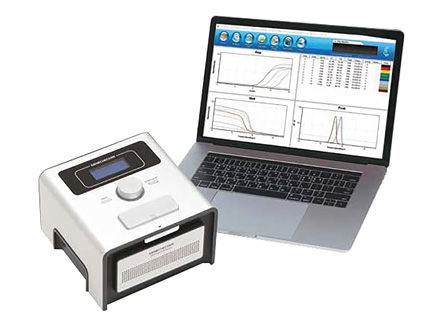

Real-time analysis through dedicated software, GeneRecorder

Small footprint(20cm x 20cm x 12.5cm) and light weight ideal for lab
as well as on-site testing environments

Battery operation possible using optional power cable

Intuitive control with LED indicated jog-dial and LCD display

One-step reverse transcriptase PCR available for RNA applications

01 New sample format and state-of-the-art hardware
technology makes the difference

  • GENECHECKER® adopted special polymer chip (Rapi:chip™)
    which enables even faster thermal treatment of the reaction samples
    it than the case of using PCR tubes at conventional
    PCR instruments. 8 °C/sec The average ramping speed of the instrument reaches 8°C/second for both heating and cooling through its sophisticated thermal cycling mechanism.

02 Innovative detection mechanism ensures reliable
results of anlaysis.

  • Integrated CMOS module of GENECHECKER® UF-150 system fully monitors and records the fluorescence signal of samples during reaction process and the recorded signals are processed and displayed within GeneRecorder software for real-time analysis. GENECHECKER® UF-150 system provides precise result of reactions using its unique data processing method at affordable price as it doesn’t use photodiode based optical system which is relative costly and being commonly used at conventional real-time PCR systems.

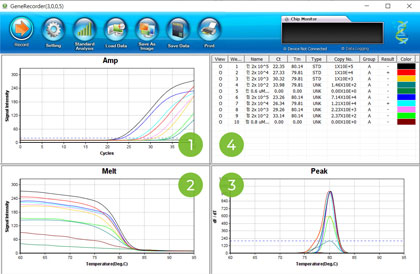

Real-time amplification curves are displayed in this section.

As a tool of post-reaction analysis, melt cycle is performed and the change of fluorescent signal of each sample during melting process is displayed in this section once the cycle is completed.

Melting peaks of samples are displayed in this section to differentiate the melting temperature of each sample.

Real-time amplification curves are displayed in this section.

Multiple amplification curves can be merged in this section to create a standard curve of certain assay.

Created standard curve is displayed in this section and the linearity and the efficiency of the curve can be reviewed.

Up to 50 samples can be loaded in this section for quantitation on the basis of certain standard curve.

Amplification curves of the samples for quantitation is displayed here. The standard curve to be used for quantitation can be reviewed in this section as well.

SPECIFICATION

Operating Mechanism
Precise Control of Peltier Element
Temperature Accuracy
± 0.5°C
Temperature Uniformity
± 0.5°C (Well to Well)
Temperature Stability
± 0.5°C
Ramping Rate
8.0°C/ second
Range of Temperature Setting
35 ~ 65 (1.0°C Increment) for RT Step / 20 ~ 99 (1.0°C Increment) for PCR
Sample Fotmat
Polymer Based 3-Dimensional Microfluidic Chip
Number of Sample per Run
10
Required Sample Volume
10μl
Typical PCR Duration
Less than 20 Minutes for 40 Cycles (without RT Step)
Method of Detection
Analysis of Digitized Fluorescence Signal
Display
Text LCD (4 Line)
Integrated Memory
Saves up to 12 PCR Protocols
Type of Excitation
High Brightness LED
Wavelength
465nm ± 10nm
Number of Detection Channel
Integrated Camera Module
Method of Fluorescence Measurement
1(FAM, SYBR Green)
PC Connection
USB 2.0 A to B (PC to Device, Only available through GENERECORDER)
Power (Wattage)
AC 110-230V (50-60Hz) input / DC 12V Output (70W)
Dimension / Weight
200(w) x 200(d) x 125(h) mm / 2.6kg

ORDERING INFORMATION

Cat. No.
Description
Pack Size
1199100101
GENECHECKER® UF-150 Real-time PCR System
1 SET
1699100500
Optional Power Cable for Car Cigarette Power Socket
1 SET

You can download further information from below section.

Choose the file to download

  • UF-150 (Brochure)
Download

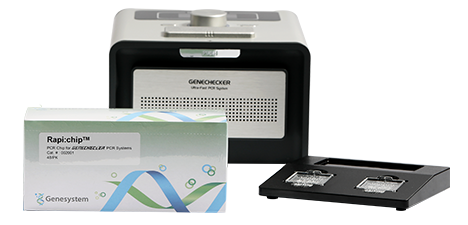

Rapi:chip™ PCR Chip for GENECHECKER®

New sample format has created big advantages.

FEATURES

Reaction volume is 10μl only, which helps faster heating and cooling.

Bottom surface of chip is made of thin film for efficient heat transfer.

Contamination and transformation free.

Two types of PCR chip are available for real-time PCR and general DNA amplification.

01 New PCR concept was born when precision molding
technology had been converged with microfluidic technology.

  • The key for achieving ultra-fast gene amplification is rapid heating
    and cooling of the sample. Rapi:chip™ was developed from
    understanding of the challenges in routine PCR tasks. PCR duration
    could be dramatically reduced when efficient heat transfer is made
    during thermal cycling process. Genesystem's own technology of
    manufacturing precise 3-dimensional polymer chips leveraged by
    its film bonding know-how created new sample format, Rapi:chip™
    for PCR applications. Sample is loaded into wide flat wells in the chip
    with the volume of 10μl. Bottom surface of Rapi:chip™ which is in tight
    contact with heat block is made of thin film so that efficient heat
    transfer from heat block to the sample in the chip is facilitated. As a
    certified manufacturer, Genesystem is manufacturing all Rapi:chip™
    line of products in accordance with GMP guidelines.

02 Two types of PCR chip are supplied for real-time analysis
and thermal cycling.

  • Rapi:chip™ is supplied in two formats. Standard version of chip
    has 10 wells and the top of each well is open for real-time analysis
    of fluorescence signal. Rapi:chip/16™ is a new version which can
    accommodate 16 samples in it and is ideal for amplifying more
    samples at once.

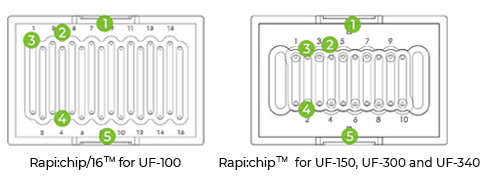

These parts are used for easy handling with fingers or tweezers.

Well number is printed on the upper surface of chip for easy identification.

Pipette tip fits in these apertures so that sample and reagent could be loaded or collected easily.

HOW TO LOAD SAMPLES

  • STEP 01.

    Prepare sample according to
    suggested protocol. Volume of
    reaction cocktail should be 10μl.

  • STEP 02.

    Using micropipette, aspirate
    prepared reaction cocktail (10μl).

  • STEP 03.

    Place pipette tip into the inlet hole
    of Rapi:chip™ and dispense whole
    volume of aspirated sample.

  • STEP 04.

    Seal entire holes using enclosed
    sealing tape. Scrub the surface of
    sealed area to secure sealing.

SPECIFICATION

Size (W x D x H)
38mm x 25mm x 6mm
Weight
3.56 g
Number of Wells
10 wells for Model UF-150 and UF-300, 16 wells for Model UF-100
Volume of Each Well
10μl
Aperture Diameter
Φ 0.6 mm
Channel Height
0.5 mm
Channel Height
8 mm
Channel Height
2 mm
Material
Transparent Polymer (Transparency : 95% +)

ORDERING INFORMATION

Cat. No.
Description
Pack Size
1099100100
Rapi:chip™ 10-well PCR Chip for UF-150 and UF-300, Standard Pack
48/PK
1699100500
Rapi:chip™ 10-well PCR Chip for UF-150 and UF-300, Medium Pack
384/PK
1699100500
Rapi:chip™ 10-well PCR Chip for UF-150 and UF-300, Large Pack
768/PK
1699100500
Rapi:chip™ 16-well PCR Chip for UF-100, Standard Pack
48/PK
1699100500
Rapi:chip™ 16-well PCR Chip for UF-100, Medium Pack
384/PK
1699100500
Rapi:chip™ 16-well PCR Chip for UF-100, Large Pack
768/PK

You can download further information from below section.

Choose the file to download

  • Rapi:chip™ PCR Chip (Brochure)
Download

GENECHECKER® Model UF-300 Real-time PCR System

Fast, Compact and Intuitive Platform
for Point-of-care Molecular Diagnostics

uf-300

FEATURES

Patented chip based reaction provides rapid output- “40 Cycles in 20 Minutes”.

Intuitive user interface (LCD touch panel) makes the test simple and easy.

Small footprint of the platform makes it ideal for point-of-care testing applications.

DC driven operation with low power consumption (Battery operation is possible.)

Improved temperature accuracy and uniformity to meet the requirements in diagnostics.

The model with dual detection channels (FAM/ROX) is available.

01 Integrated touch panel user interface for intuitive controls.

  • GENECHECKER® UF-300 real-time PCR system has touch panel interface on the top so that users can intuitively set the parameters and instantly run the tests. This 8 inch sized panel is made of TFT display to provide brighter view and faster response.

02 Improved instrument performance for delicate diagnostic application.

  • While it maintains its unique performances of ultra-fast reactions, UF-300 real-time PCR system offers improved temperature accuracy and uniformity. This platform has dual detection channels (FAM/ROX) for the application demanding internal controls of the test.

  • home

    Main screen consists of four simple menu which can be intuitively chosen and used.

  • simple_run

    Test protocols are saved with easily identifiable codes for instant tests. Users without any knowledge on the PCR test can instantly run the test from this screen.

  • protocol

    Test protocols can be intuitively programmed and easily reviewed by user. Use can review the programmed sequence of the reaction and instantly edit the reaction program.

  • pcrrun

    For easy analysis, real-time reaction curves are displayed as the same format of other real-time PCR instruments.

SPECIFICATION

Operating Mechanism
Precise control of peltier element
Temperature Accuracy
± 0.2°C
Temperature Uniformity
± 0.2°C (well to well)
Ramping Rate
8°C / second
Range of Temperature Setting
1 ~ 99°C (0.1°C resolution)
Sample Format
Polymer based 3-Dimensional Microfluidic Chip
Number of Sample per Run
10
Reaction Volume
10μl
Method of Detection
Measurement of fluorescence signal using CMOS module
Display and User Interface
7 inch TFT display capacitive touch panel
Type of Excitation
High brightness LED
Detection Channel
FAM and ROX
Emission Wavelength
FAM : 472 nm / ROX : 575nm
Power
AC 100-240V, 50/60Hz Input / DC 12V Output(MAX 2.0A)
Current Consumption
Max. 2.0A
Connectors
USB Type A 2 ports
Dimension
218(w) x 200(d) x 142(h) mm
Weight
3.3 kg

ORDERING INFORMATION

Cat. No.
Description
Pack Size
1399100200
GENECHECKER® UF-300 Real-time PCR System
1 SET
1699100500
Optional Power Cable for Car Cigarette Power Socket
1 SET

You can download further information from below section.

Choose the file to download

  • UF-300 (Brochure)
Download
  • · UF-100
  • · UF-150
  • · UF-300
  • · Rapi:chip
